Haunted Mansion

Director: Justin Simien

Production Designer: Darren Gilford

Supervising Art Director: Tom Reta | Set Decorator: Victor Zolfo | Robert "Bob" Blackburn

Promotional Posters: The Walt Disney Studios

Int. Gracey Seance Room Furniture | Art Director: Kristen Maloney

Concept Images of Bruce's Chair | Illustrator: Simon Murton

Construction Drawings

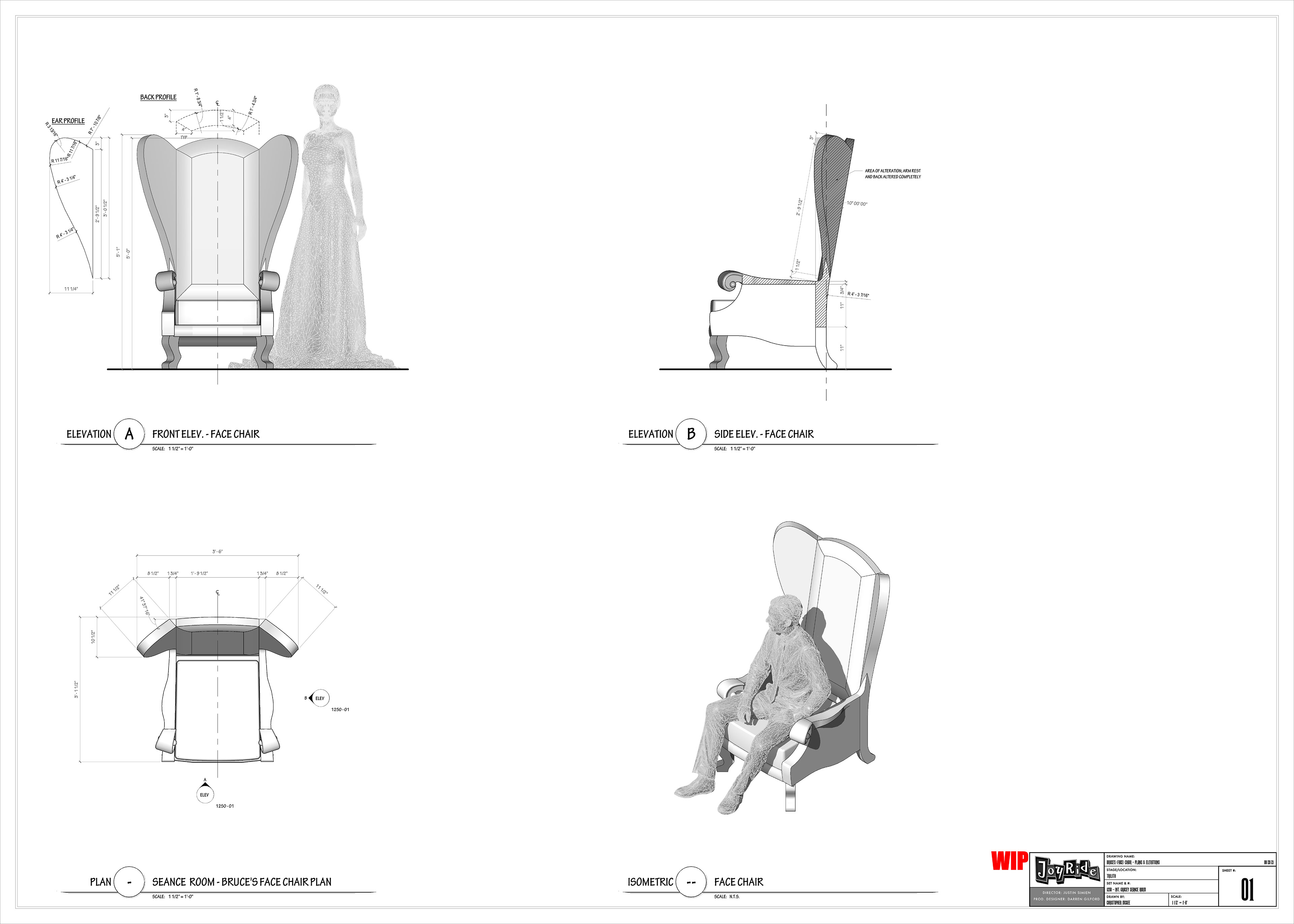

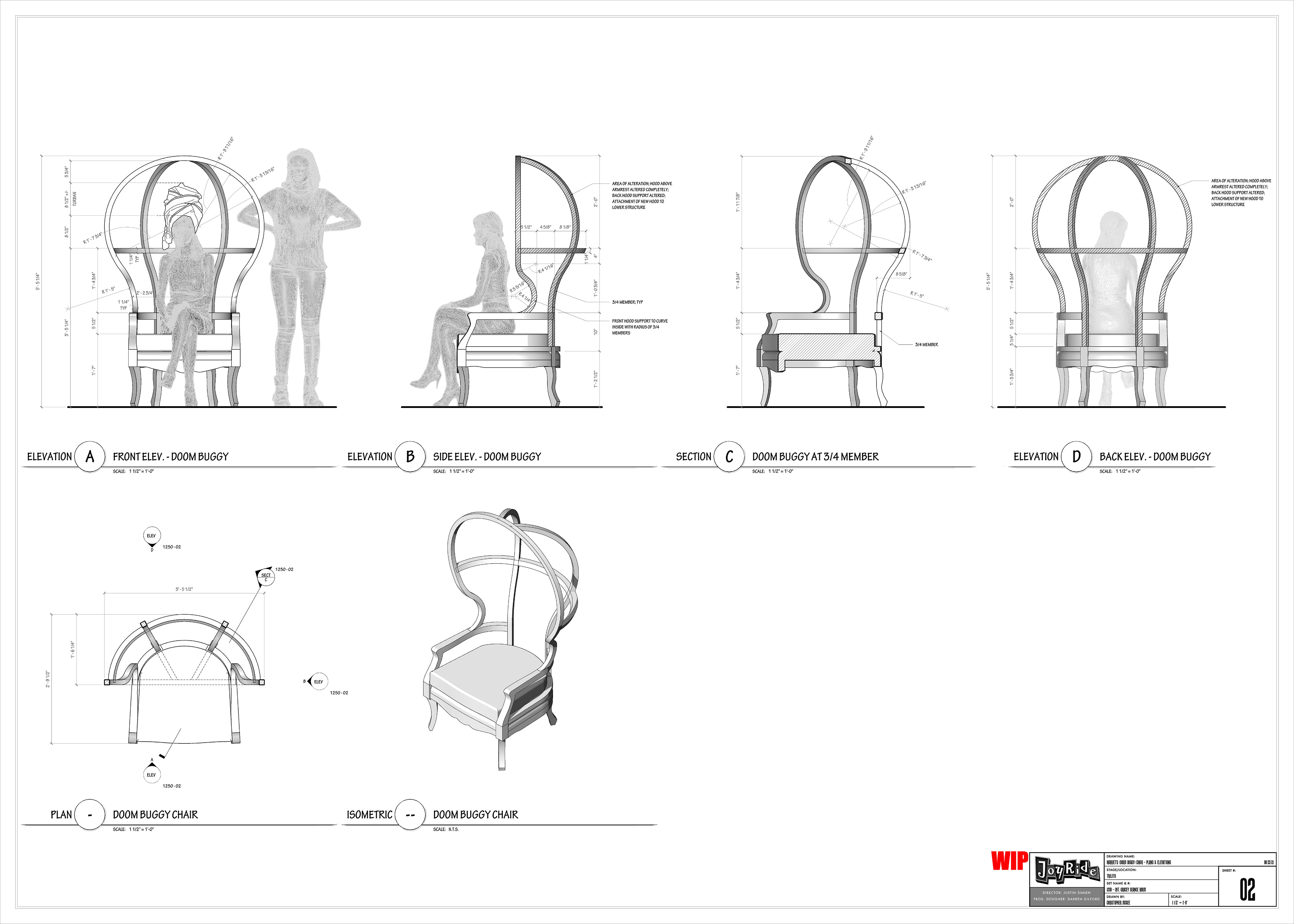

Bruce's Chair for Props & Special Effects - Alteration of Sourced Chair

Harriet's/Madame Leota's Chair for Props & Special Effects - Alteration of Sourced Chair

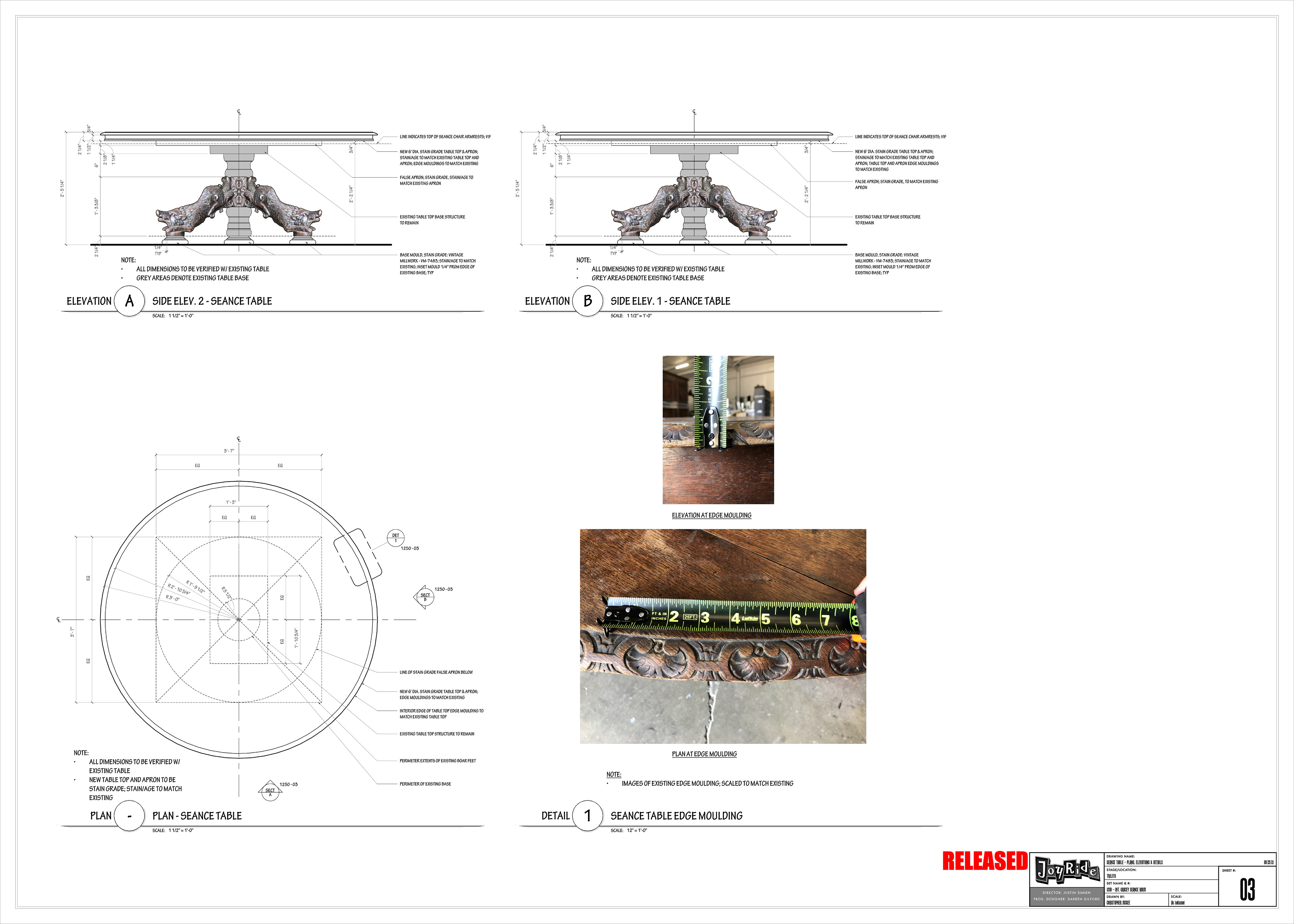

Seance Room Table - Alteration of Sourced Table

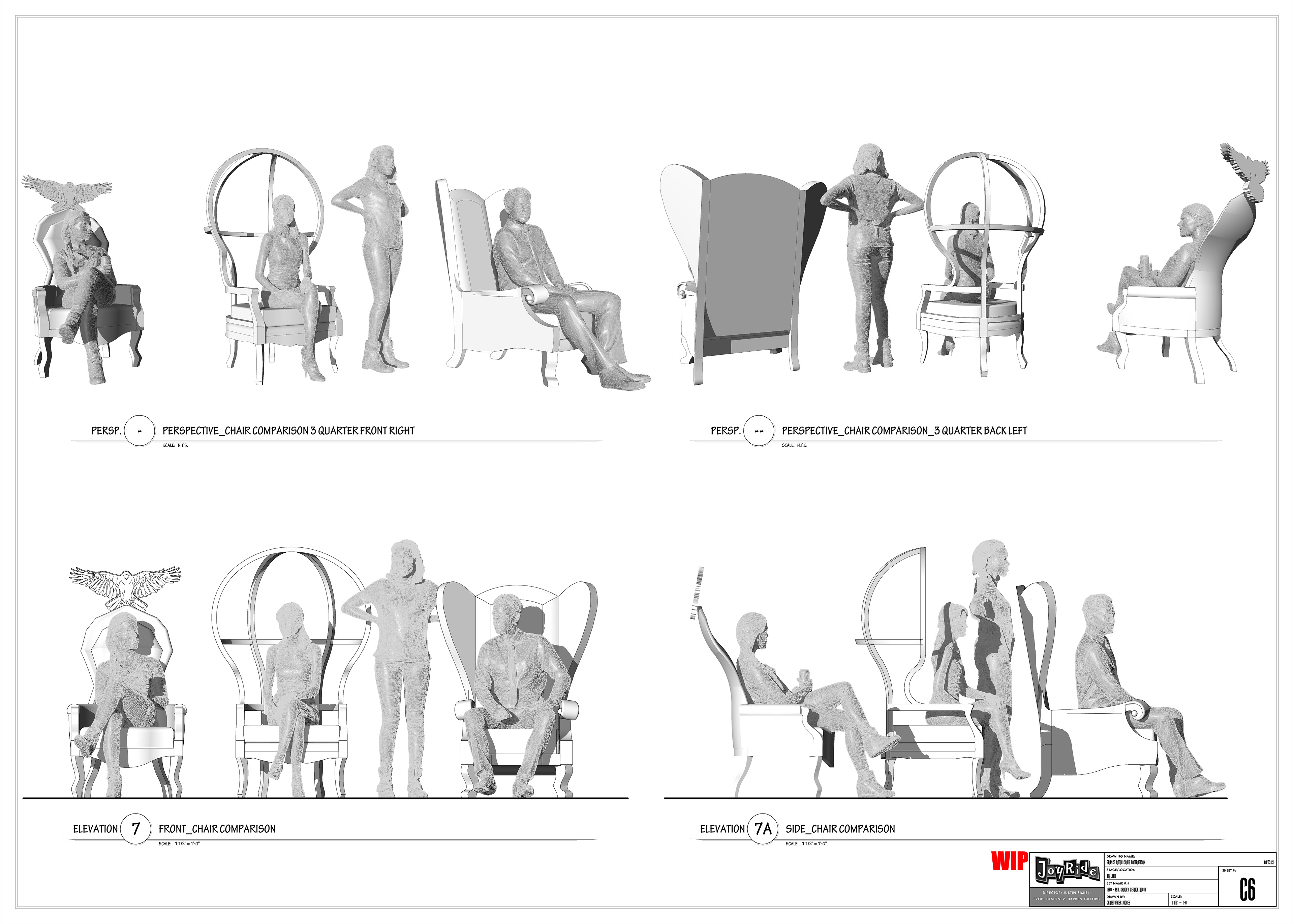

Seance Room Chair Comparison

Set Photos

Seance Room Table and Chairs

Harriet & Madame Leota's Chair

Bruce's Chair

Int. Crump Basement / Underground Graveyard | Art Director: Scott Plauche

Concept Image | Illustrator: Laurent Ben-Mimoun

Underground Graveyard by Illustrator Laurent Ben- Mimoun

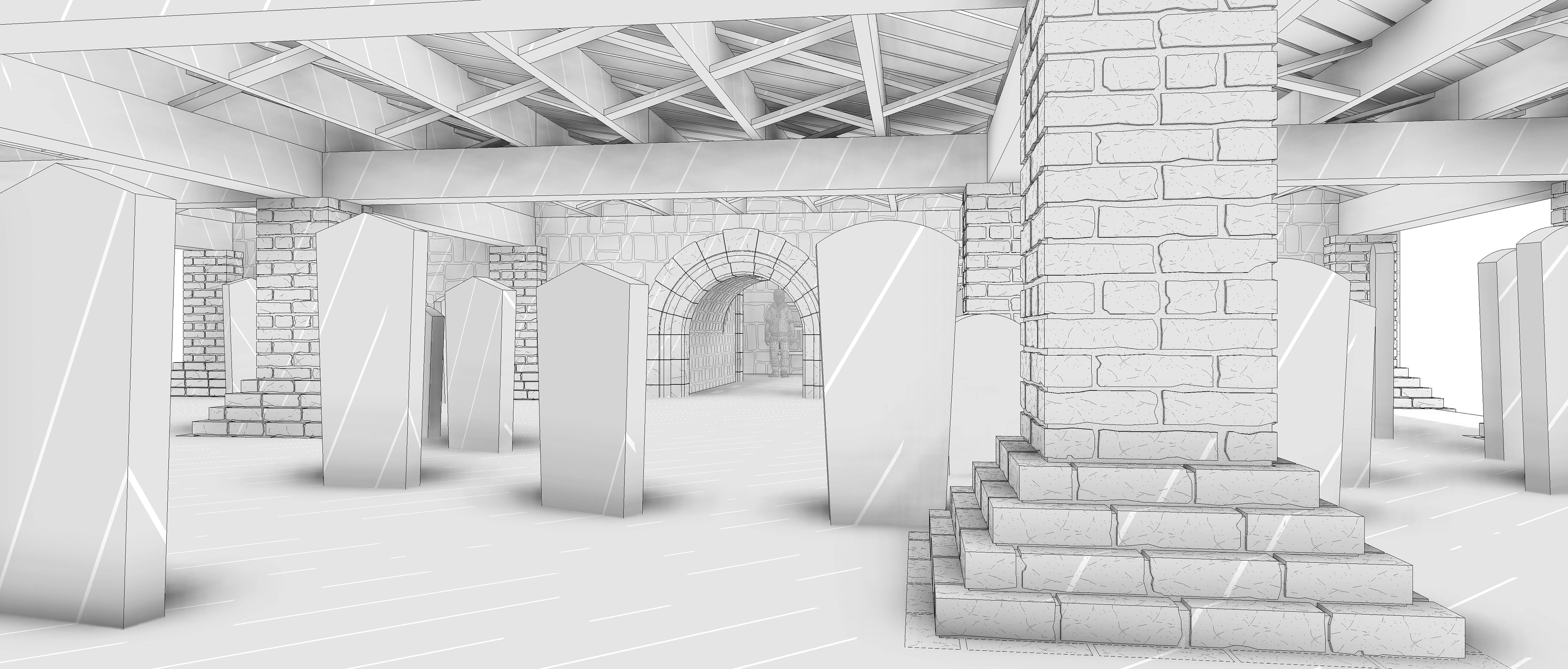

Perspectives

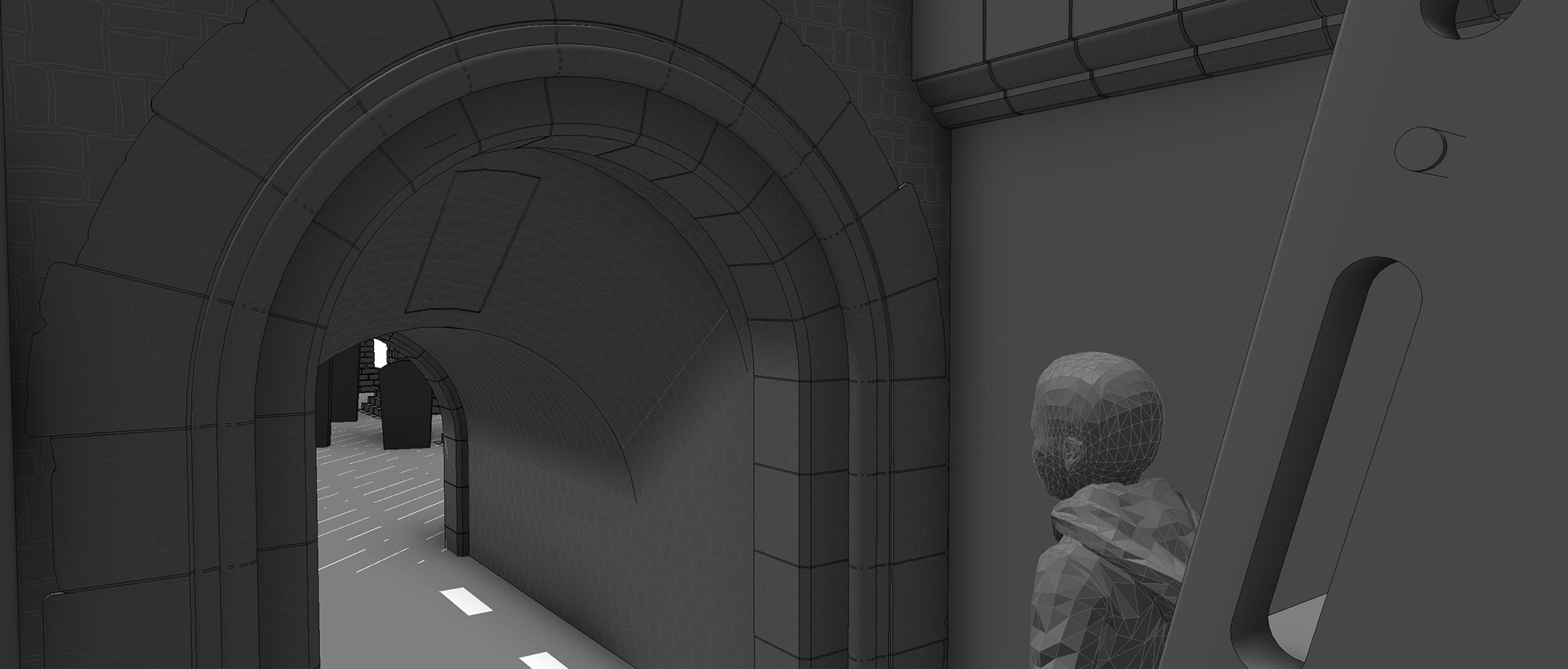

View from secret tunnel into Crump's underground graveyard

Construction Drawings - Partial

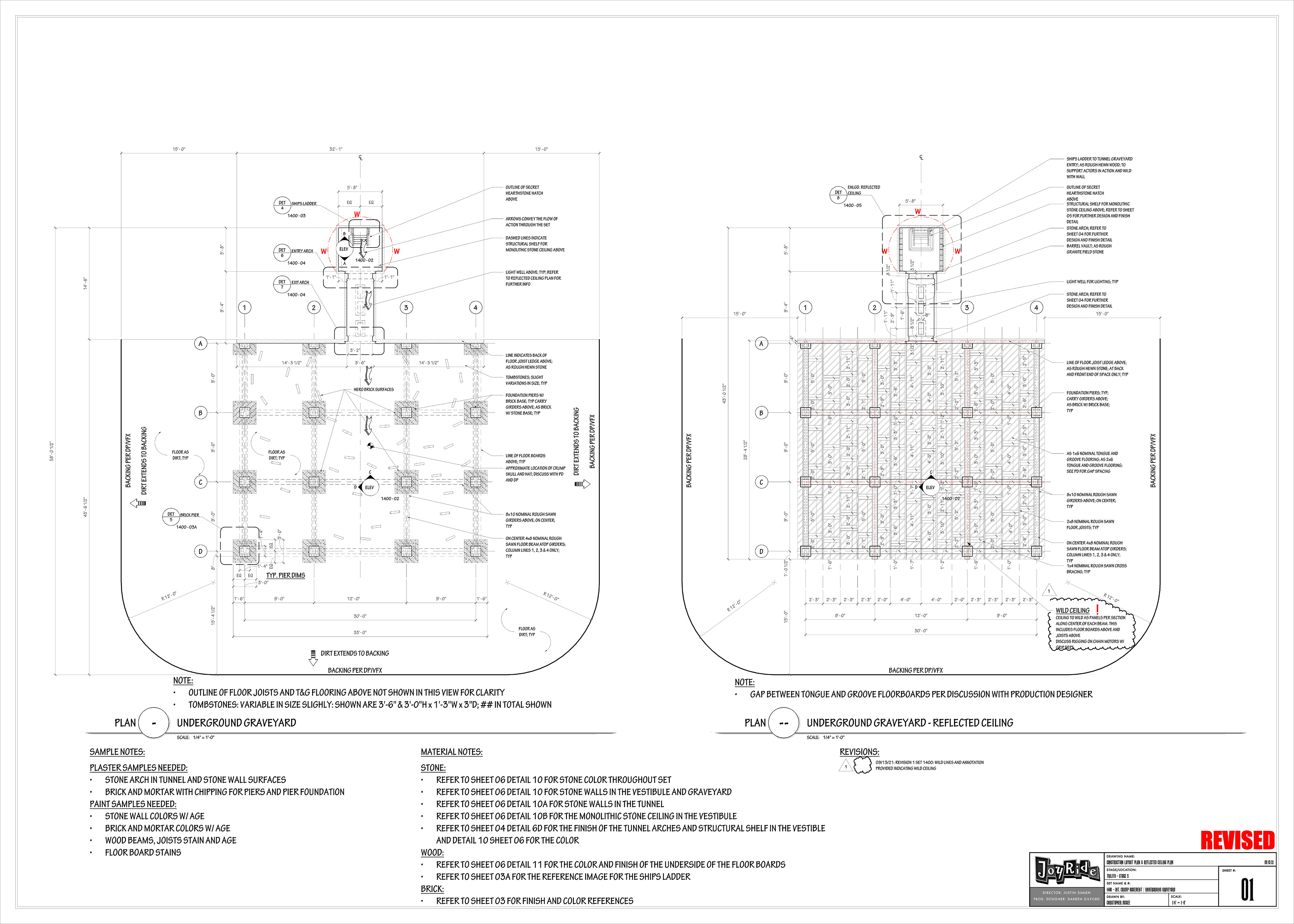

Ground Plan and Reflected Ceiling

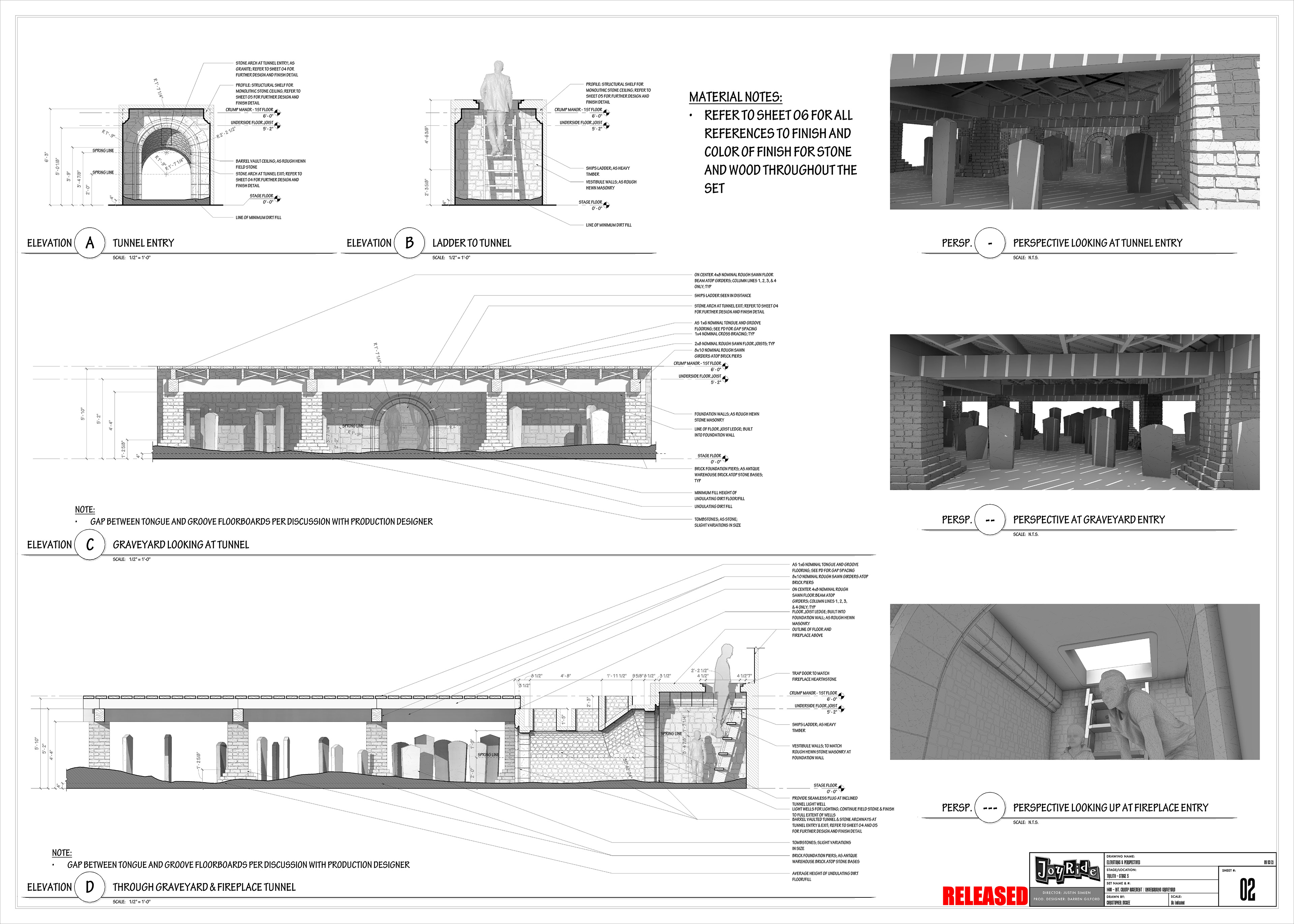

Elevations and Perspectives

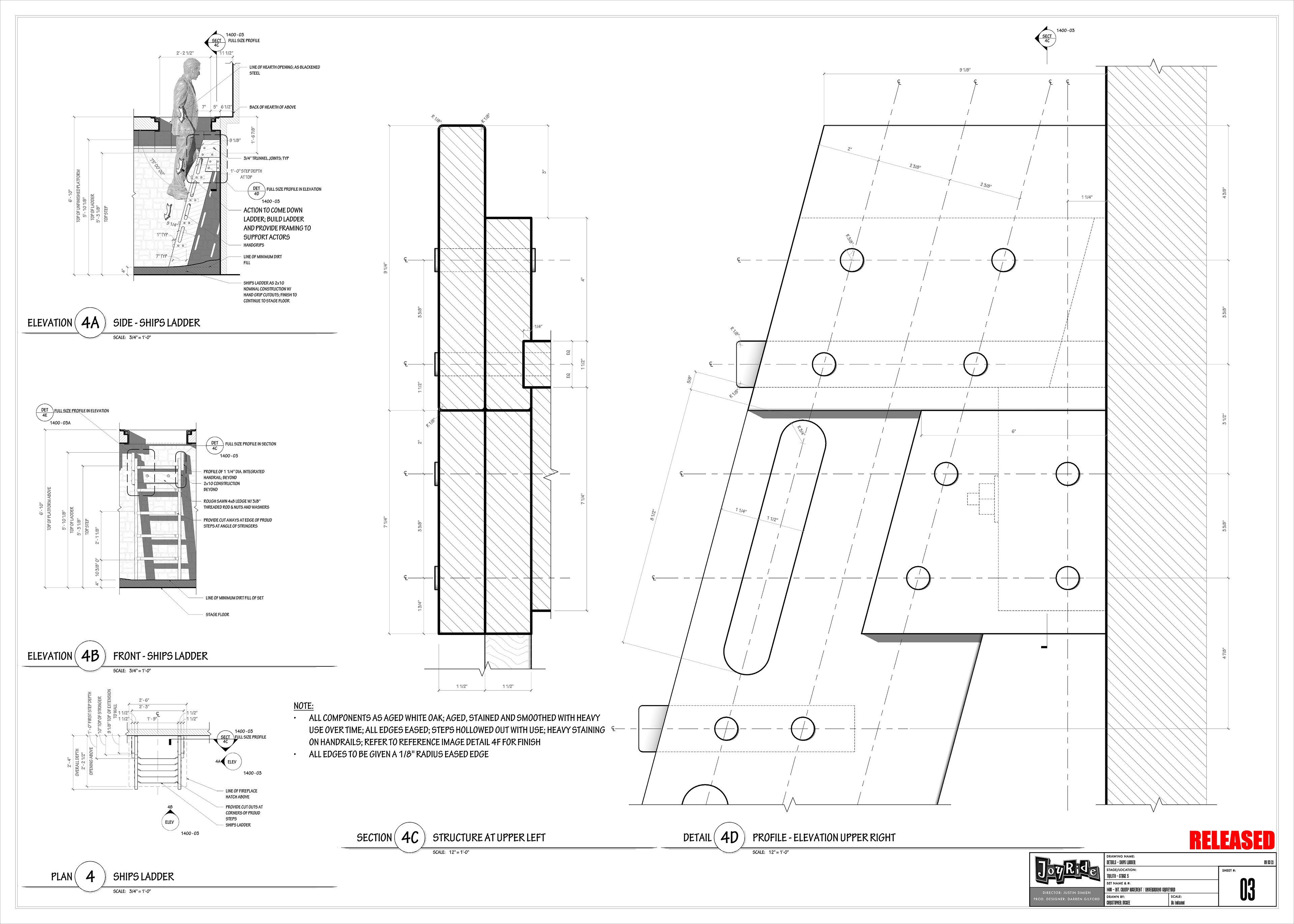

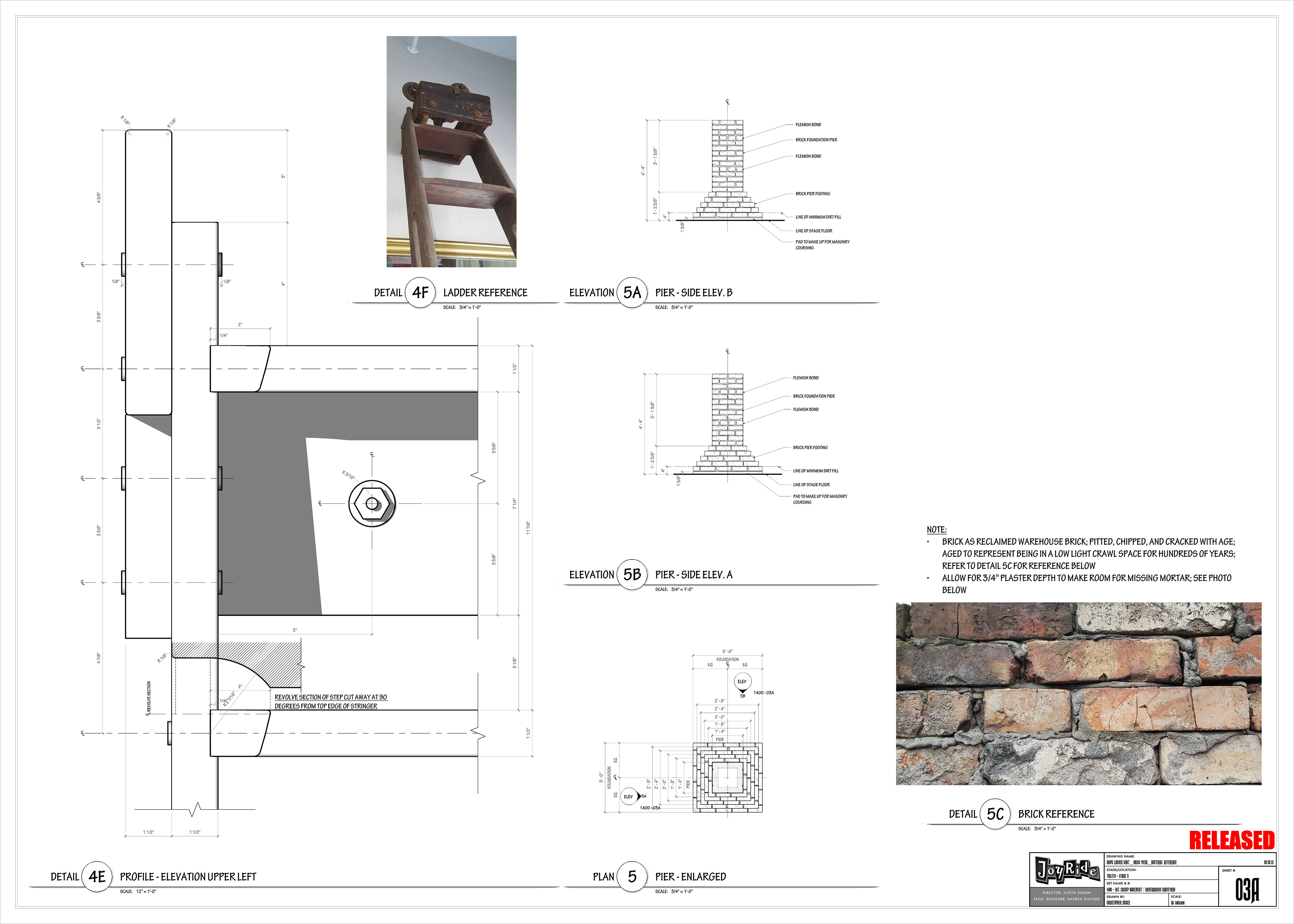

Details - Ship Ladder

Details - Ship Ladder

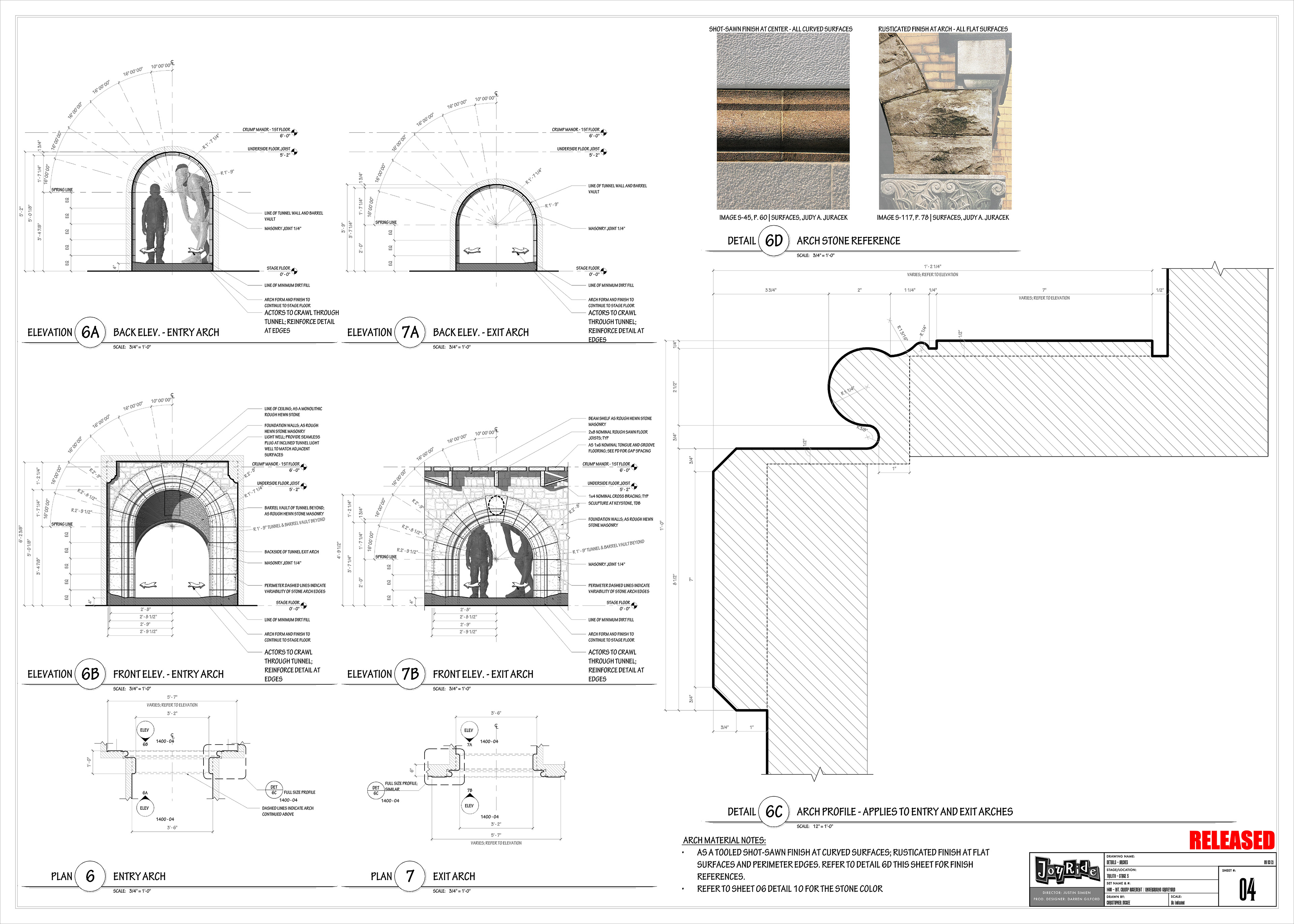

Details - Arches

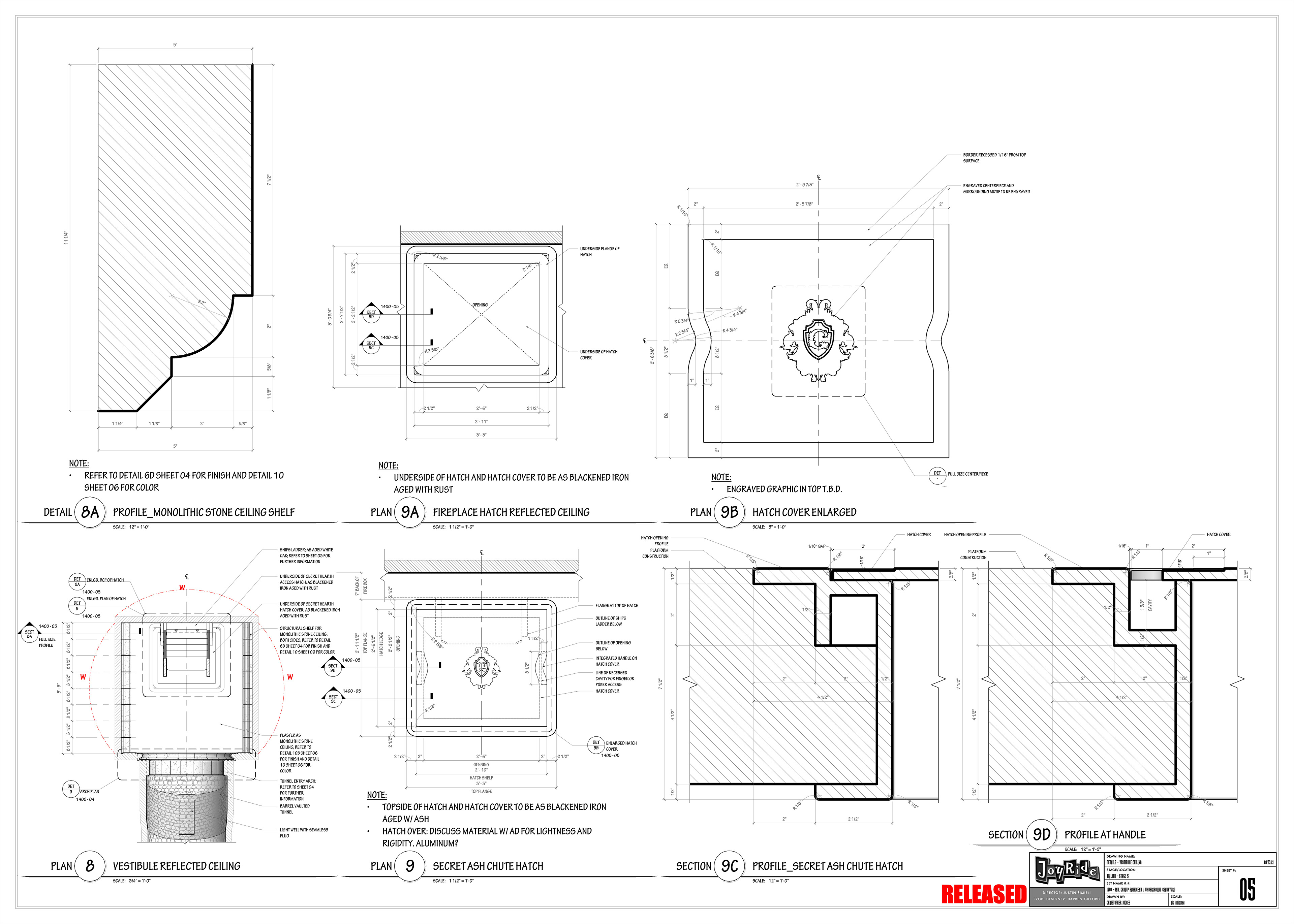

Details - Ceiling Shelf and Fireplace Hatch

Set Photos

Work in progress view showing graveyard with brick pillars and floorboards above, back to tunnel. Photo Credit - Jaime Marin

View of secret tunnel entry

View of ladder and secret fireplace hearth entry

Finished set with tombstones looking towards tunnel exit
